Atmos 3D Room Visualiser

Wohler has released a free firmware upgrade for users of its flagship iAM-12G-SDI when purchased with Dolby Atmos option.

Two new screens help the user visualise the location of each audio bed or dynamic channel for both actual and dynamic channels. The audio bed is the arrangement of speakers in the listening room; the sounds produced by the audio bed accurately simulate the locations of the dynamic objects, which are heard as sound sources from any location in the listening room.

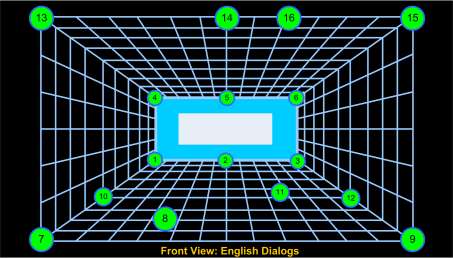

The first screen shows the listening room with a 3D front view, with a representation of the video program screen location shown in the center as a white rectangle. The various objects are shown as named channels (in blue boxes) for the audio bed objects, or as numbered channels (in green circles) for the dynamic objects. Dynamic objects may move around through the 3D screen as they move in the program material. These objects appear according to what is present in the Dolby ATMOS bitstream. A maximum number of 16 objects can be displayed simultaneously.

The second screen shows the listening room with a 3D top view, looking down into it. The displays gives a representation of the video program screen location, shown in the center top (front wall) as a white rectangle. Also shown are audio bed objects, which are in fixed positions as speakers in the listening room. Either dynamic channel objects or audio bed objects can be shown in the Dolby ATMOS 3D Room Visualiser.

A Metadata screen is also included, providing three sets of data, selected via tabs. It includes traditional Dolby Metadata, Loudness Data, and Presentation Data, which provides x-y-z coordinates for the position of objects in the 3D Room Visualizer.

“With the release of the 3D Room Visualizer and related metadata, we are very pleased to complete the integration with Dolby Atmos and provide a complete end-to-end solution for monitoring Dolby Atmos via any of 12G-SDI, AES3, and the audio essence of SMPTE-2110,” says Wohler Engineering Manager, Amol Natekar.
